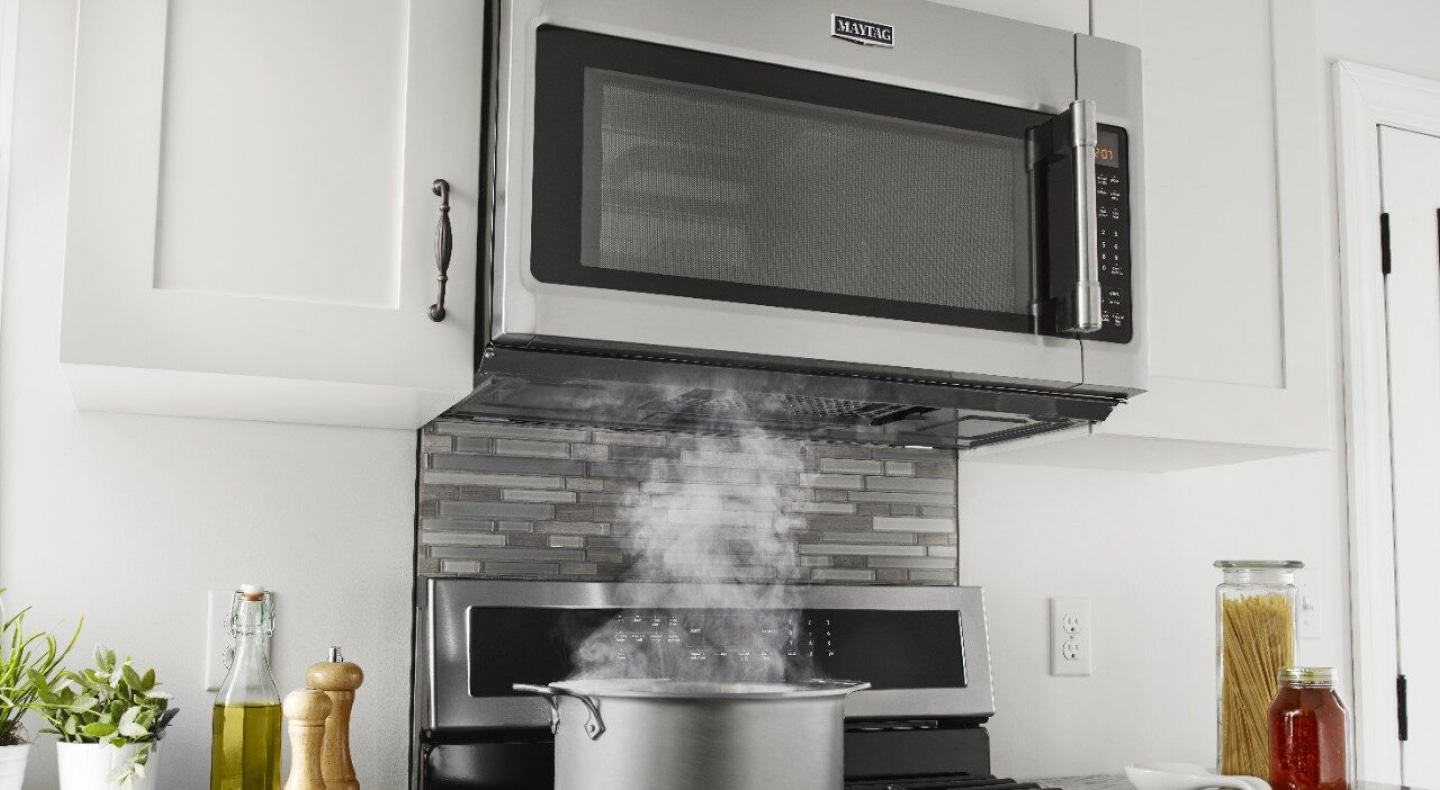

Installing an Over-the-Range Microwave Hood Combination
Installing an over-the-range microwave hood combination can free up counter space and help provide powerful ventilation and air-clearing abilities. Learn how to tackle this project yourself with a few tools and this step-by-step overview of the process.
Make sure to always consult the installation instructions for your model for exact directions. If you are looking to upgrade or replace your current appliance, Maytag brand offers a wide selection of dependable over-the-range microwaves for your home.
HOW TO INSTALL A MICROWAVE RANGE HOOD COMBO
This nine-step guide provides a general overview of everything from measuring your cutout space, to locating wall studs and installing your microwave above the range. Be mindful to always follow your owner’s manual for guidance. If you have questions or concerns about electrical wiring or ventilation, consider consulting a professional for assistance.
What You Need to Install a Range Hood Microwave Combination
For your over-the-range microwave installation, enlist the help of another person for assistance moving the appliance. From start to finish, plan for about two hours to complete the process. These steps may be followed for other types of microwaves, such as low-profile models, but keep in mind the dimensions may vary.
Please note that this guide takes into account an existing cutout space above your range with the required electrical connections and ventilation in place. If electrical requirements or ductwork need to be addressed, consult a professional for assistance. Remember to always follow your microwave installation guide for specific instructions.
Tools
Measuring tape
Pencil
Masking tape
Scissors
Keyhole saw
Phillips screwdriver
Drill and drill bits
Bolts or lag screws
Socket wrench
Drop cloth or towel
Stud finder
SUPPLIES
Cardboard template
Mounting bracket (this may also be used as the template if cardboard is not present)

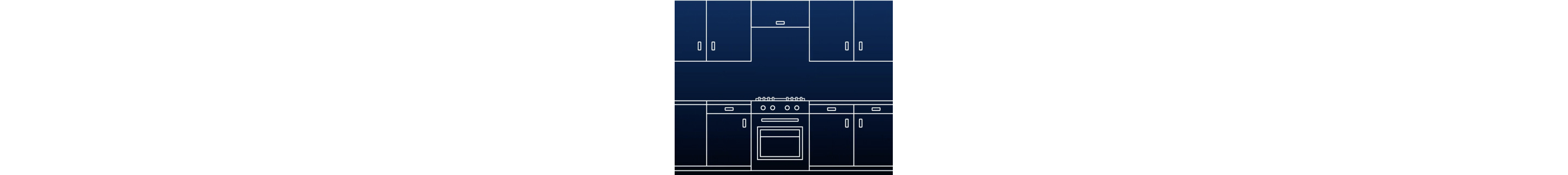

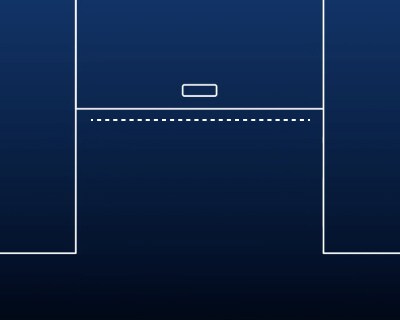

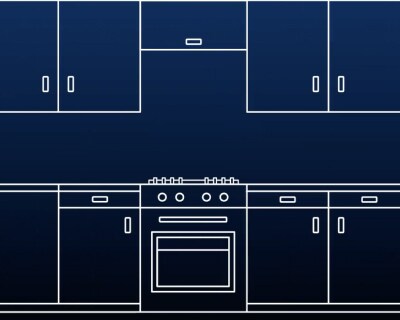

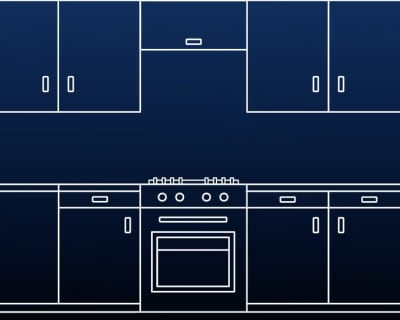

Step 1: Prepare the installation area
First, unplug your range and carefully slide it away from the work area with the help of another person.
Place a drop cloth across the floor to cover the work surface.

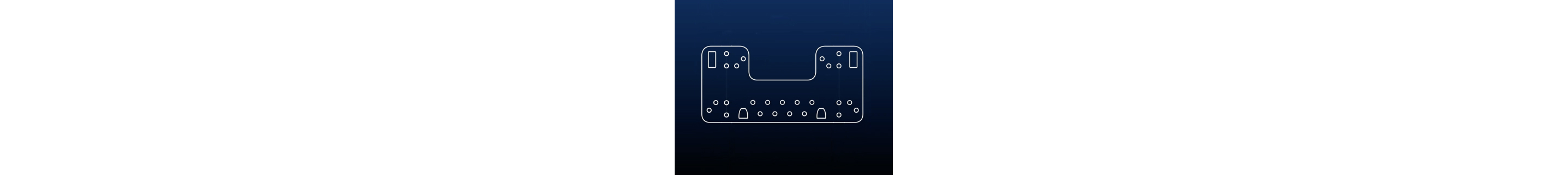

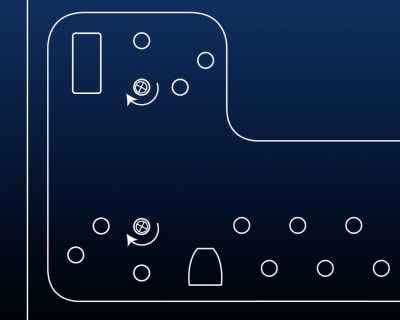

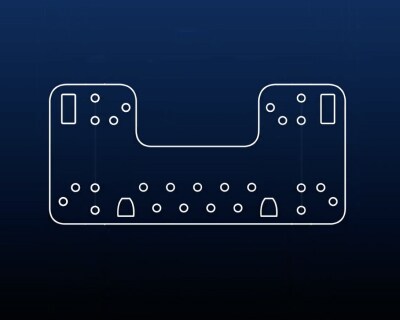

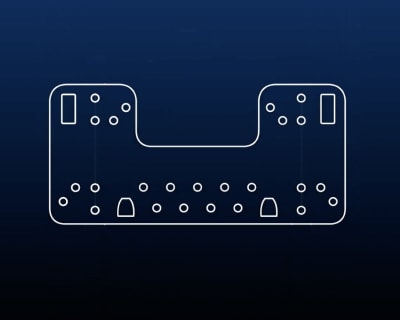

Step 2: Remove the mounting plate
Depending on your model, the mounting plate may be attached to the back of the microwave or placed in foam packaging.
Tape the microwave doors shut to avoid the door swinging open during the installation process.

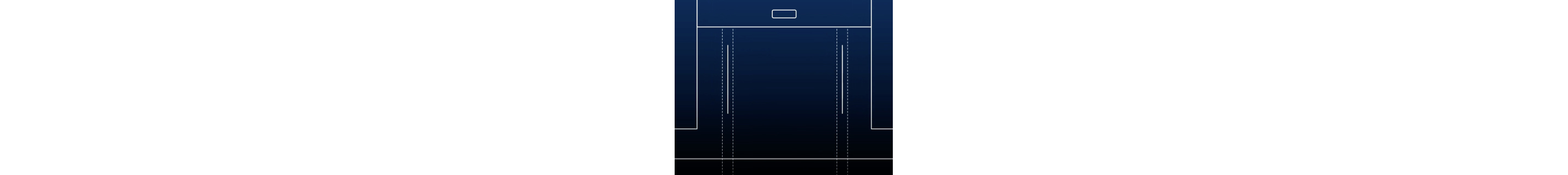

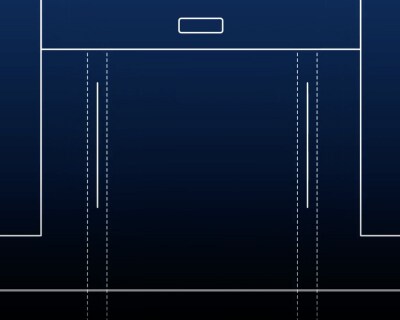

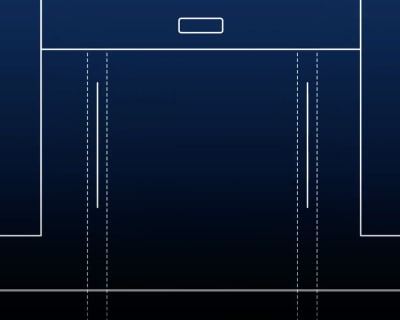

Step 3: Locate the wall studs
With your stud finder, locate the edges of the wall studs within the cutout space. The microwave needs at least one wall stud for installation, but two are ideal. If wall studs are not present, do not install the microwave above the range.
Mark the center of each stud, and draw a vertical line down from each stud center.

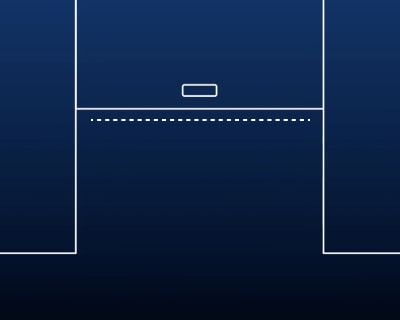

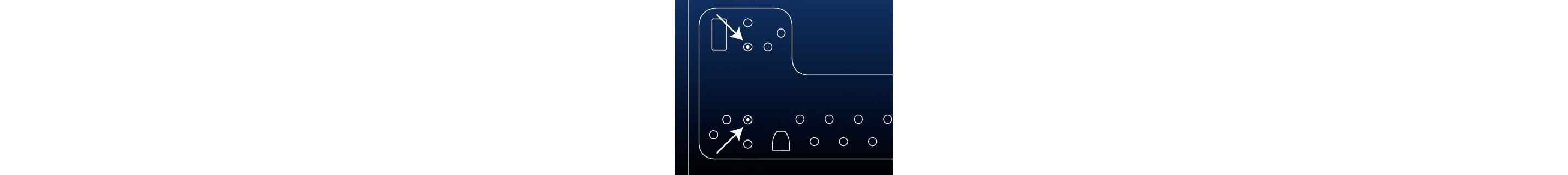

Step 4: Apply the template to the wall
Using the stud markings from the previous step, align the center markings on the cardboard template to the centerline on the wall. Make sure that the template is level and flush with the bottom edge of the upper cabinet. If a template is not included with your microwave, the mounting bracket may be used as a substitute.
Holding the template in place, mark the two drill holes in the lower corners, and draw a horizontal line along the bottom edge of the template.
Find the vertical lines for each stud drawn in Step 3. Mark at least one drill hole closest to these lines.
This horizontal line drawn at the bottom will notate the end holes and bottom edge of the mounting bracket. For specific instructions for drilling holes near one or more studs, refer to your owner’s manual for more information.

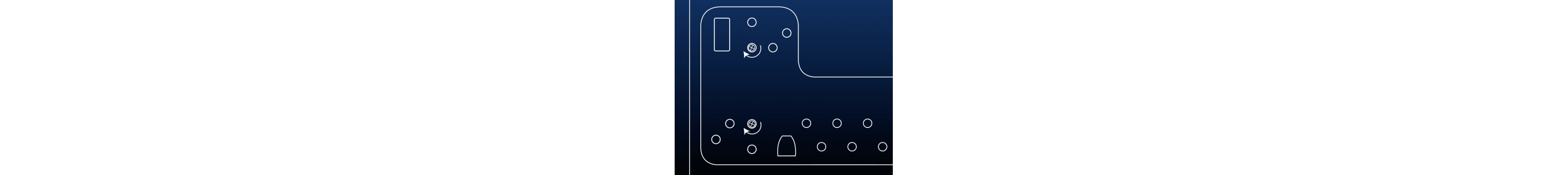

Step 5: Drill
After the markings have been made, drill holes in the rear wall at each bottom corner and stud locations.

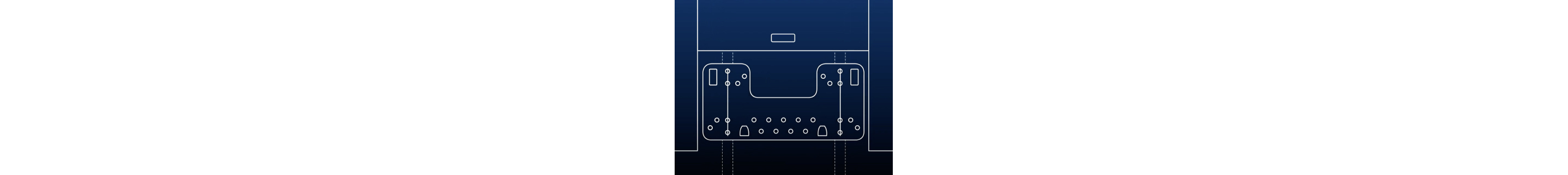

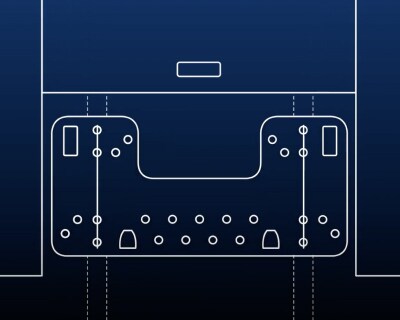

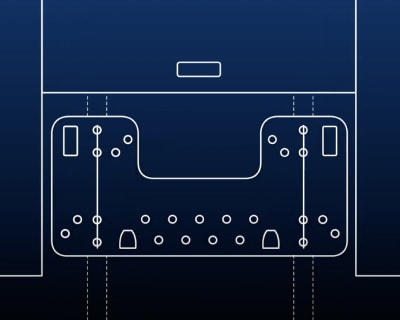

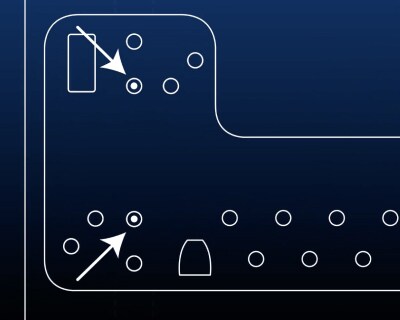

Step 6: Attach the mounting plate to the wall
Secure the mounting plate to the wall at both end holes with bolts or lag screws.
Step 7: Prepare the upper cabinet
Remove all contents of the cabinet above your cutout space.
Align the cardboard template to the bottom of the cabinet.
Ensure that the template centerlines match the vertical lines drawn on the wall. If your template has “rear wall” arrows, make sure they are against the rear wall. This allows for an accurate hole placement for the microwave power cord in the upper cabinet.
Step 8: Cut the power cord hole
Using a keyhole saw, follow the template to cut a hole big enough for the power cord to flow through to the cabinet. Refer to your microwave installation guide for specific instructions and hole sizes for your model.

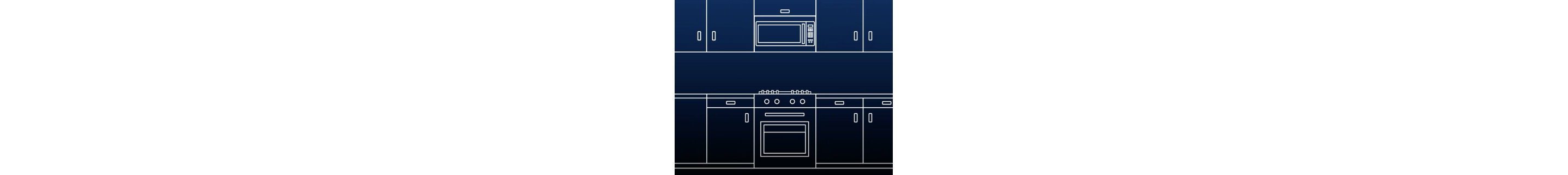

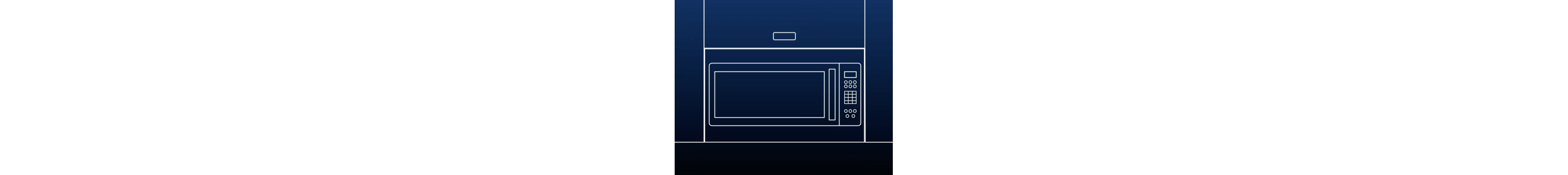

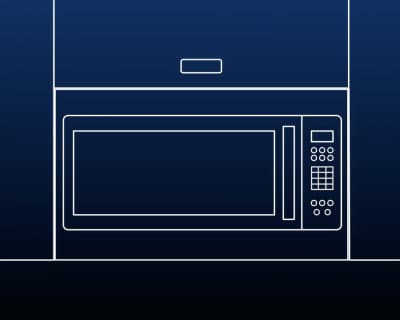

Step 9: Install the microwave above the stove
With the help of another person, lift the microwave and place it on the support tabs at the bottom of the mounting plate.
Tilt the appliance toward you, and thread the power cord through the hole into the upper cabinet.
Rotate the microwave up toward the cabinet and hold it in place against the mounting plate.
With another person holding the microwave in place, insert bolts through the bottom of the upper cabinet into the appliance. Tighten until the microwave is flush with the cabinet.

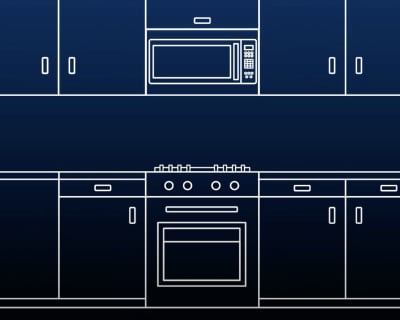

Plug in your microwave, clear the workspace and enjoy!
Discover Maytag® Microwave Range Hood Combinations
Powerful microwave range hood combinations from Maytag® can help you look forward to leftovers with settings designed to deliver delicious microwaved meals.
FIND REPLACEMENT PARTS FOR MAYTAG® MICROWAVES
Whether you are looking for light bulbs, filters or mounting brackets, Maytag has you covered with a wide selection of microwave replacement parts and accessories. Consult a professional if you need help identifying the correct part.
OVER-THE-RANGE MICROWAVE INSTALLATION FAQS
Questions about your over-the-range microwave installation? Refer to the FAQs below for more insight on tackling this project.
CAN I INSTALL A MICROWAVE HOOD MYSELF?
For DIY installation, enlist the help of another person to mount an over-the-range microwave. For professional installation, Maytag provides appliance service and delivery that you can count on.
Does an over-the-range microwave need to be vented?
An above-the-range microwave does not need to have ventilation to the outdoors. These models may be installed with a fan configuration that circulates air indoors. As an alternative, countertop microwaves are also configured for use without special installation or ventilation needs.
HOW MUCH SPACE IS NEEDED AROUND A MICROWAVE FOR VENTILATION?
The amount of space that you’ll need around your microwave for ventilation can depend on the type of microwave. Countertop microwaves generally require a 1 inch ventilation space from the back of the appliance to the wall. If venting through your roof, installing a Maytag® over-the-range microwave requires at least 3 inches of clearance space between the top of the microwave oven and the transition piece. Check your user’s manual for model-specific installation instructions.
How do you install a range hood vent through the wall?
Installing a range hood vent through the wall may require adjustments to the ventilation system in your home. This may vary depending on your circumstances. Refer to your appliance installation guide and consult a professional for assistance.
How do you wire a range hood?
Wiring a range hood requires proper grounding and electrical connections. Consult a licensed electrician for any electrical concerns.
DO OVER-THE-RANGE MICROWAVES COME WITH A MOUNTING KIT?
An over-the-range microwave typically comes with a mounting kit and installation instructions. Check your user’s manual to confirm that all the parts are included with your microwave.
DO OVER-THE-RANGE MICROWAVES NEED A TRIM KIT?
A microwave trim kit is a trim frame that can be installed around your microwave to cover any gaps around the appliance for a seamless integration with your kitchen cabinets. A trim kit is more likely to be used to create a built-in look when mounting a countertop microwave above your range. It’s generally not necessary for an over-the-range microwave.
